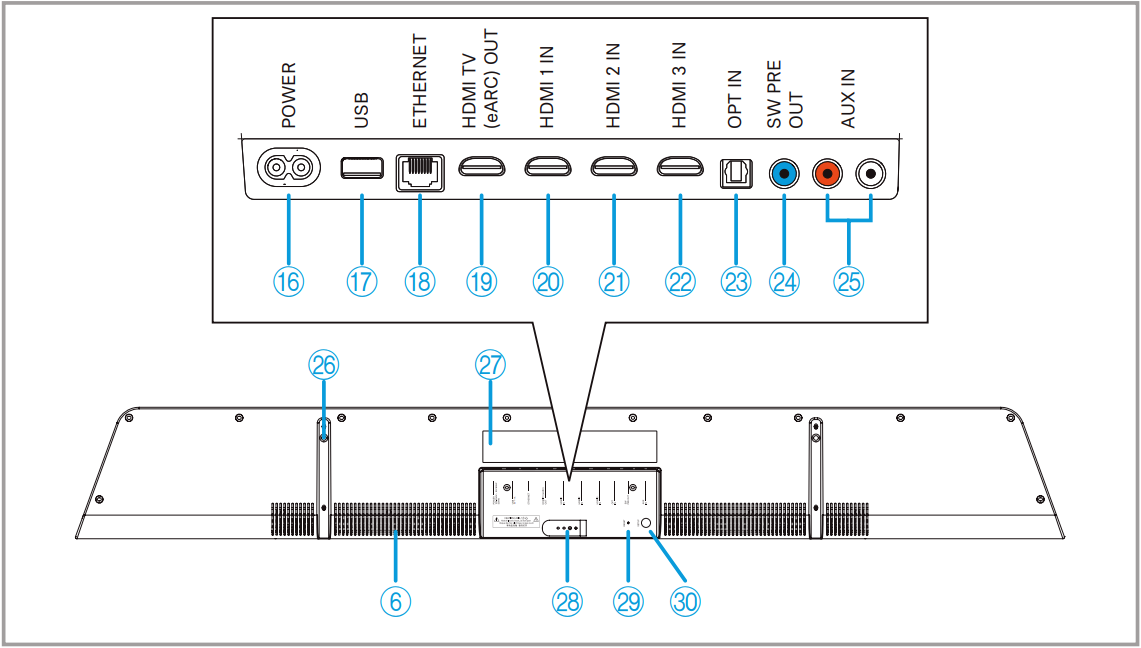

Ambeo Soundbar Max (SB01)
Image and descriptions are taken from Ambeo Max (SB01) Product Manual.
Numbered descriptions refer to image numbers.
16- IEC mains socket POWER 100 - 240 V~, 50/60 Hz, 250 W
17- USB input (for updates only) type B, USB 5 V⎓, 1 A
18- Ethernet input RJ45, ETHERNET
19- HDMI output HDMI TV (eARC) OUT 5 V⎓, 1 A
20- HDMI input HDMI 1 IN HDMI input
21- HDMI 2 IN HDMI input
22- HDMI 3 IN
23- S/PDIF input, optical, OPT IN
24- Output for connecting a subwoofer with power amplifier RCA socket SW PRE OUT
NOTE: Ambeo Max (SB01) does NOT support wireless subwoofer connection to Ambeo Subwoofer (SW02)
25- RCA input sockets for an analog audio source AUX IN
Other Connections-
- Bluetooth
- Chromecast (Audio only)
- Multiple Streaming Services (configured through Smart Control App)

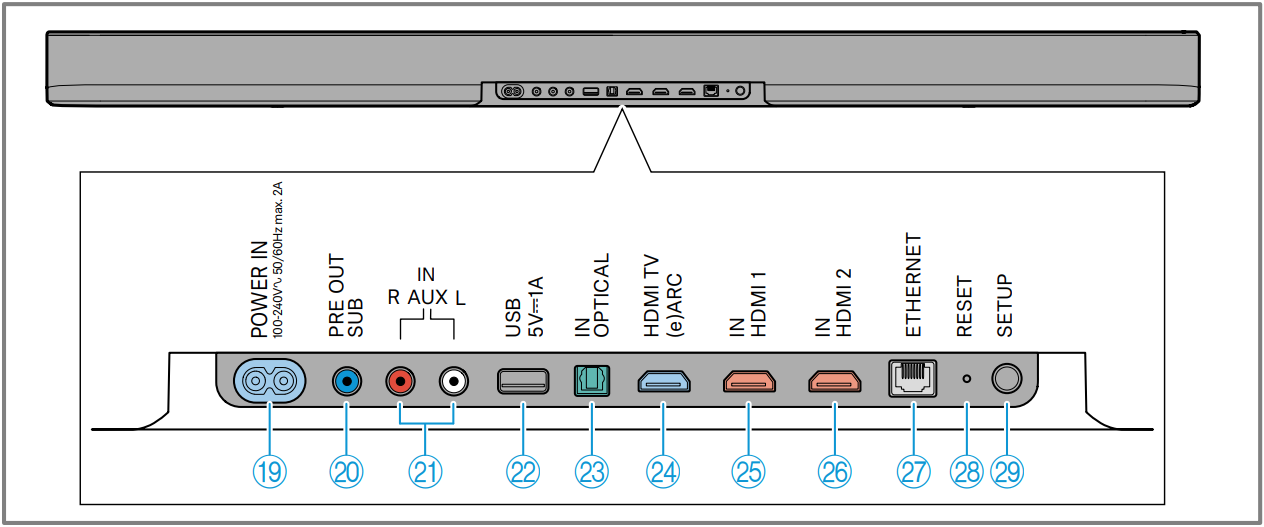

Ambeo Soundbar Plus (SB02 M)
Image and descriptions are taken from Ambeo Plus (SB02 M) Product Manual.
Numbered descriptions refer to image numbers.
19- POWER IN socket 100 - 240 V~, 50/60 Hz, max 2.5A
20- PRE OUT SUB Output RCA socket for connecting a subwoofer with power amplifier
NOTE: Ambeo SB02 Plus (SB02 M) DOES support wireless subwoofer connection to Ambeo Subwoofer (SW02)
21- AUX IN L and AUX IN R inputs RCA sockets for an analog audio source
22- USB socket type A, USB 5 V⎓, 1 A (for updates only)
23- OPTICAL IN input for S/PDIF, optical
24- HDMI TV (e)ARC socket for HDMI
25- HDMI 1 IN input for HDMI
26- HDMI 2 IN input for HDMI
27- Ethernet socket for Ethernet, RJ45
Other Connections-
- Bluetooth
- Chromecast (Audio only)
- Multiple Streaming Services (configured through Smart Control App)

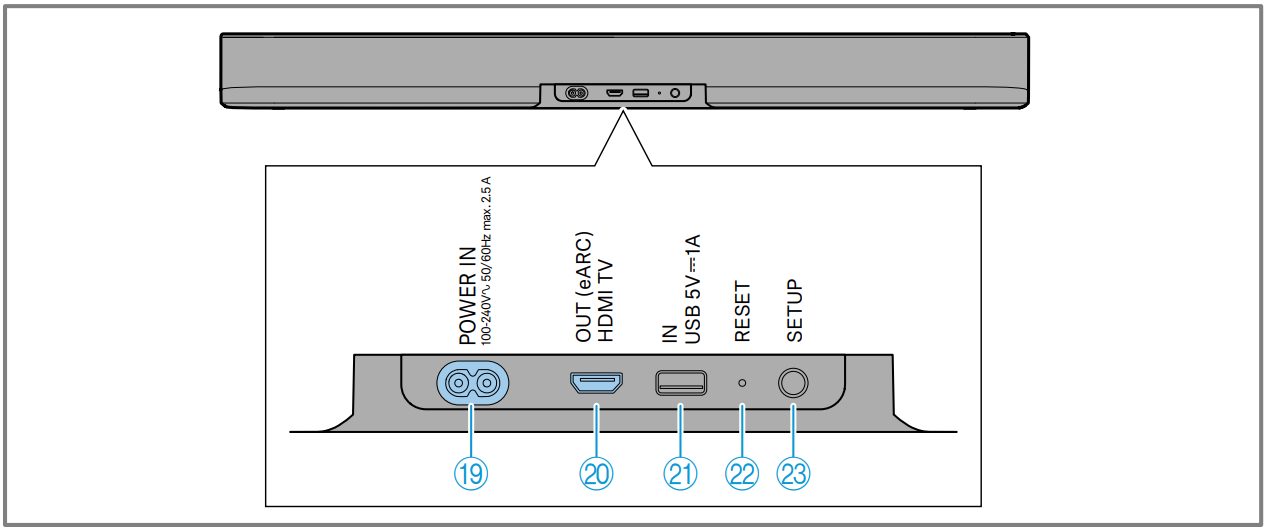

Ambeo Soundbar Mini (SB02 S)
Image and descriptions are taken from Ambeo Mini (SB02 S) Product Manual.
Numbered descriptions refer to image numbers.
19- POWER IN socket 100 - 240 V~, 50/60 Hz, max 2.5A
20- HDMI TV (e)ARC socket for HDMI
21- USB socket type A, USB 5 V⎓, 1 A (for updates only)
NOTE: Ambeo SB02 Mini (SB02 S) ONLY supports wireless subwoofer connection to Ambeo Subwoofer (SW02)
Other Connections-
- Bluetooth
- Chromecast (Audio only)
- Multiple Streaming Services (configured through Smart Control App)
