Removing the rechargeable battery
Tools required: Phillips screwdriver PH000

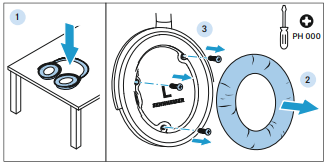

- Place the TV headphones on a flat, stable surface, such as a table.
- Remove the ear pad from the left ear cup to protect it from damage (see here for instructions).
-
Remove the three Philips head screws from the left ear cup with
the screwdriver. -

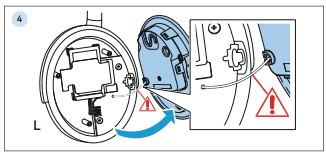

Attention! Risk of damage to the speaker cable. Do not pull the
acoustic unit off too far and remove it carefully.

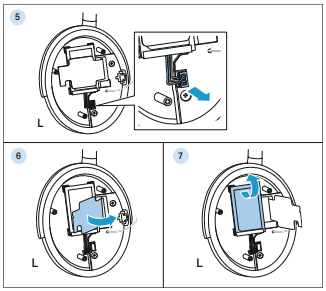

Open the left ear cup by pulling the acoustic unit upwards - Disconnect the battery cable plug from the main circuit board.
- Open the rubber lid that covers the rechargeable battery.
-
Remove the rechargeable battery.
Inserting the new rechargeable battery
▷ Place the rechargeable battery into the holder.
▷ Close the rubber lid.
▷ Connect the battery cable plug to the main circuit board.
▷ Close the ear cup by putting on the acoustic unit.
▷ Attach the acoustic unit by tightening the three Philips head
screws.
▷ Reattach the ear pad back onto the ear cup (see here for instructions).
